In the world of electrical wiring, safety and efficiency always come first. As projects vary from residential installations to large-scale industrial systems, the choice of cable becomes critically important. Two terms that often appear in this discussion are . Though they sound similar, their structures, applications, and performance differ significantly.
, , and how to select the right type of Earth Cable for your needs.
is the most common type of cable used in residential and light commercial wiring. It consists of two insulated, current-carrying conductors (hot and neutral) and an uninsulated or lightly insulated grounding conductor, typically in a flat configuration. This type of cable is often installed in walls, ceilings, and floors to power outlets, lighting systems, and other basic electrical equipment.
Its most significant advantages are its cost-effectiveness and ease of installation, making it extremely popular in home wiring. In Europe and the UK, in particular, Twin and Earth Cable has become the standard choice for residential power distribution. The presence of a grounding conductor ensures that in the event of a fault, current is quickly diverted to the earth, thereby enhancing the safety of the entire wiring system.
are not designed for power supply but rather for grounding protection. Their primary function is to provide a low-resistance current path. In the event of a short circuit or leakage, they safely conduct the fault current to the ground, thereby reducing the risk of electric shock and protecting electrical equipment.

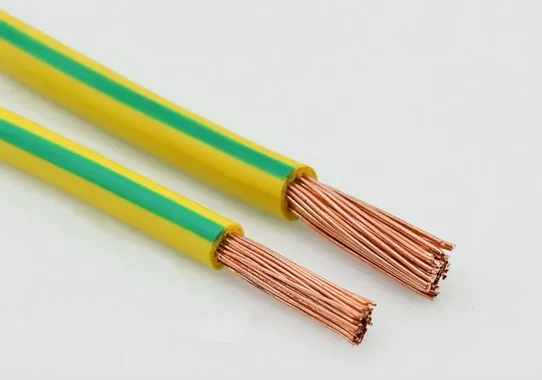

There are many different types of earth cables. The most common is single-core earth cable , typically with green and yellow insulation for easy identification during installation. Another common product is , which is used to connect metal pipes and steel structures inside a building to the grounding system, ensuring consistent electrical potential everywhere and preventing potential electric shock hazards. In some industrial or outdoor scenarios, armored or multi-core earth cables are also used to meet more stringent environmental and safety requirements.
Although both involve grounding conductors, Twin and Earth Cable differs significantly from Earth Cable in terms of function and application. Twin and Earth Cable is a power supply cable with a built-in grounding conductor, primarily serving residential and light commercial wiring. Earth Cable, on the other hand, is a cable specifically designed for grounding protection and potential equalization, with applications ranging from residential and commercial to large-scale industrial projects.
| Two insulated conductors + one bare ground wire | Single or multi-core copper conductor with green/yellow insulation | |
| Including single core earth cable, bonding earth cable, etc. |
From this, we can see that the former is more focused on power supply functions, while the latter focuses on electrical safety. Although both are important components of the electrical system, their focus is completely different.
As a cable manufacturer with over 30 years of experience in the industry, Dongguan Greater Wire & Cable Co., Ltd.a complete range of high-performance, safe and reliable grounding cable solutions , and meeting your diverse needs with professionalism and responsibility.
depends on multiple factors. Here's a simplified guide:
- Residential systems: Single core earth cable in green/yellow insulation is typically sufficient.
- Industrial facilities: Bonding earth cables or larger cross-sectional earth cables may be required.
Conductor Size (Cross-Section):
- The cable must be sized according to the maximum possible fault current. Larger systems demand thicker cables.
- Copper remains the most common choice due to its high conductivity and reliability.
- Tinned copper is ideal for humid or corrosive environments.
- Always ensure the product meets international certifications (e.g., IEC, BS, UL) to guarantee safety and performance.
Why choose Dongguan Greater Wire & Cable Co., Ltd.?
Choosing the right cable isn't just a matter of procurement; it's also about safety and long-term reliability. With over 30 years of experience, Dongguan Greater Wire & Cable Co., Ltd. has become a trusted partner for customers in over 80 countries worldwide.
- : covering single core earth cable, bonding earth cable and other types with complete specifications.
- : length, material, insulation color, specifications, etc. can all be customized according to customer needs.
- : With over 50,000 square meters of factory space, we have fast delivery speed and can meet large-volume and urgent orders.
- : The product complies with multiple international certifications, ensuring safety and performance.
- : A team of professional engineers provides customers with selection suggestions and technical guidance, and provides comprehensive pre-sales and after-sales services.
- 24-hour customer service : 24-hour online support to respond to customer needs at any time.
.
